A servo-controlled voltage stabilizer (SCVS) is a regulator designed with microcontroller to automatically maintain constant voltage level. In most industries, a minor fluctuation in voltage can cause the connected equipment to malfunction or breakdown. The basic use of SCVS is to control fluctuation and to provide a constant output Voltage with +/- 1% accuracy.

SCVS is supplied in following types according to its input and output Supply as:

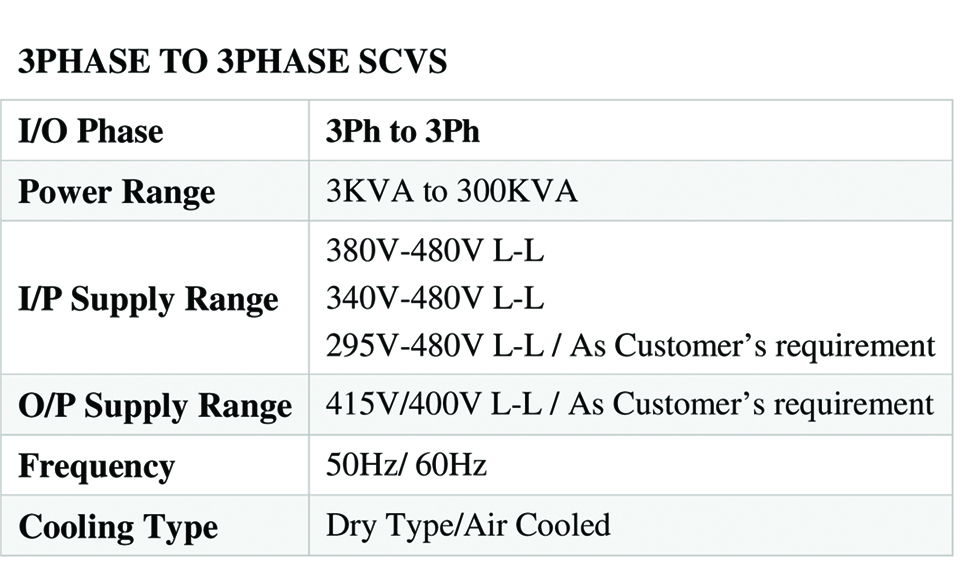

3PHASE TO 3PHASE SCVS

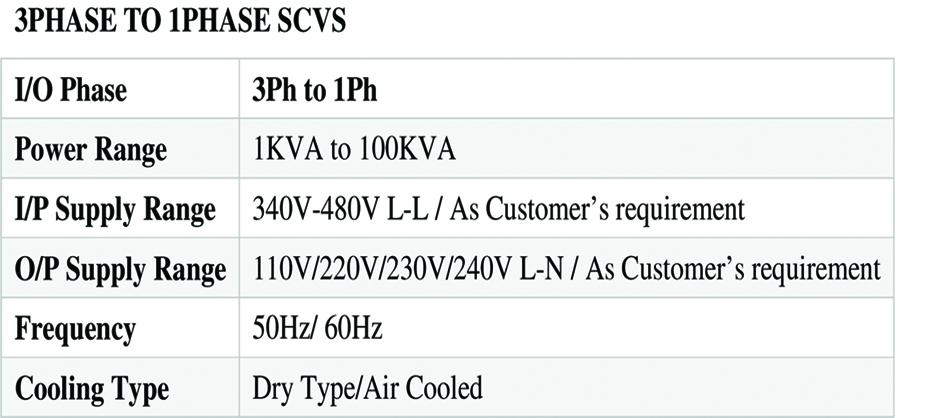

3PHASE TO 1PHASE SCVS

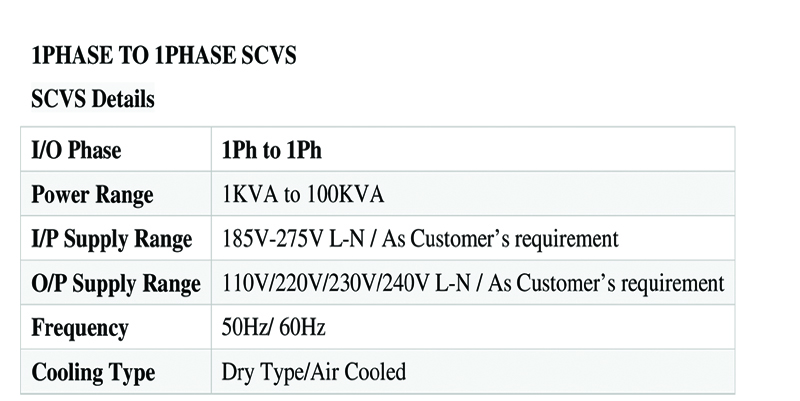

1PHASE TO 1PHASE SCVS

KEY HIGHLIGHTS:

• Microcontroller Based Fully Digital
• Customized Compact Designs of Cubicles
• Cost effective prices
• Isolation with Excellent mechanical and short-circuit strength due to the VPI Process
• Isolated Local Ground Bonded Neutral
• Better Correction Rate better than 18 V/sec
• Cooling: Natural Air / Oil
• Under / Over Voltage & Overload Protection through microcontroller
• Overload & short - circuit protection through Input Breakers
• More than 95% efficiency
• Input EMI / RFI Filter
• More added features, as customer’s requirement
